An Overview of Fluorescence Microscopy

In the 1670s, Dutch scientist Antonie Von Leeuwenhoek first discovered microbial life forms through his simple light microscope, a finding that would initiate a revolution in the field of microscopy.1 Since his early observations of what he termed ‘animacules’, the field has seen a quantum leap from his self-designed single lens microscopes to the current high resolution cryo-electron microscopes.2 Among these technological advances was the advent of fluorescence microscopy, a field that remains pivotal to modern biological research.3 In this article we will explore the basic principles governing fluorescence microscopes, the components involved, and its different variants.

Principles of Fluorescence

Biological specimens pose a unique challenge to imaging due to their low refractive indexes comparable to water, resulting in light scattering and reduced contrast. Staining and fluorescence technologies were discovered, chiefly to tackle this issue. The term ‘fluorescence’ was coined by physicist George Gabriel Stokes to describe the difference in a molecule’s emission and excitation wavelengths.4 Light is a form of electromagnetic radiation that has inherent energy in the form of ph­otons.5 Fluorescence occurs when a molecule absorbs photons from an excitation source which “bumps up” the electrons to an unstable higher energy level. Eventually the “excited” electrons fall back to their stable lower energy levels. But in doing so they lose some of the excess energy absorbed by emitting the emission of photons,  a process that occurs within a few nanoseconds. Because of this energy loss, the emitted photon has less energy than the absorbed photon (Fig 1.). In other words, the emitted photon is of a higher wavelength than the excited photon. This change in energy is called a Stokes shift.6

Figure 1. Jablonski Diagram of excitation and emission of a fluorescent dye.

Fluorescence Microscopy

It was not until the early 1900s that the principles of fluorescence was extrapolated to microscopy. The first working fluorescent microscope was developed by Oskar Heimstaedt in 1911. Initially, fluorescence microscopy was performed with transmitted light, with the path of the light beam following the design of a light microscope. The problem with this layout was that the emitted fluorescence is weak in comparison to the excitation light, resulting in masking the signals from the specimen. This issue was rectified by Philip Ellinger and August Hert in 1929 by placing the excitation and emission optics on the same side of the specimen, a method known as epi-illumination.1,4,6

Epi-illumination

The basic fluorescent microscope carries a laser that provides the excitation light which is filtered by custom excitation filters. Similarly, emission filters are placed in the path of the emitted light beam from the sample, blocking out all undesired wavelengths, thereby ensuring a high signal-to-noise ratio (Fig. 2).7,8 Epi-illumination is a form of reflective optics, where the excitation and emission light beam are on the same side of the specimen. This enables the capture of weak emission signals from the specimen and greatly reduces noise from the transmitted light beam. With the invention of dichroic mirrors in the 1960s, this became the template for all epi-fluorescent microscope designs. In standard fluorescent microscopes, the dichroic mirror serves as the primary optical element separating the excitation and emission light. The mirror is placed at a 45 angle and reflects the shorter excitation wavelength toward the specimen while the longer emitted wavelength is transmitted by the dichroic mirror for observation.

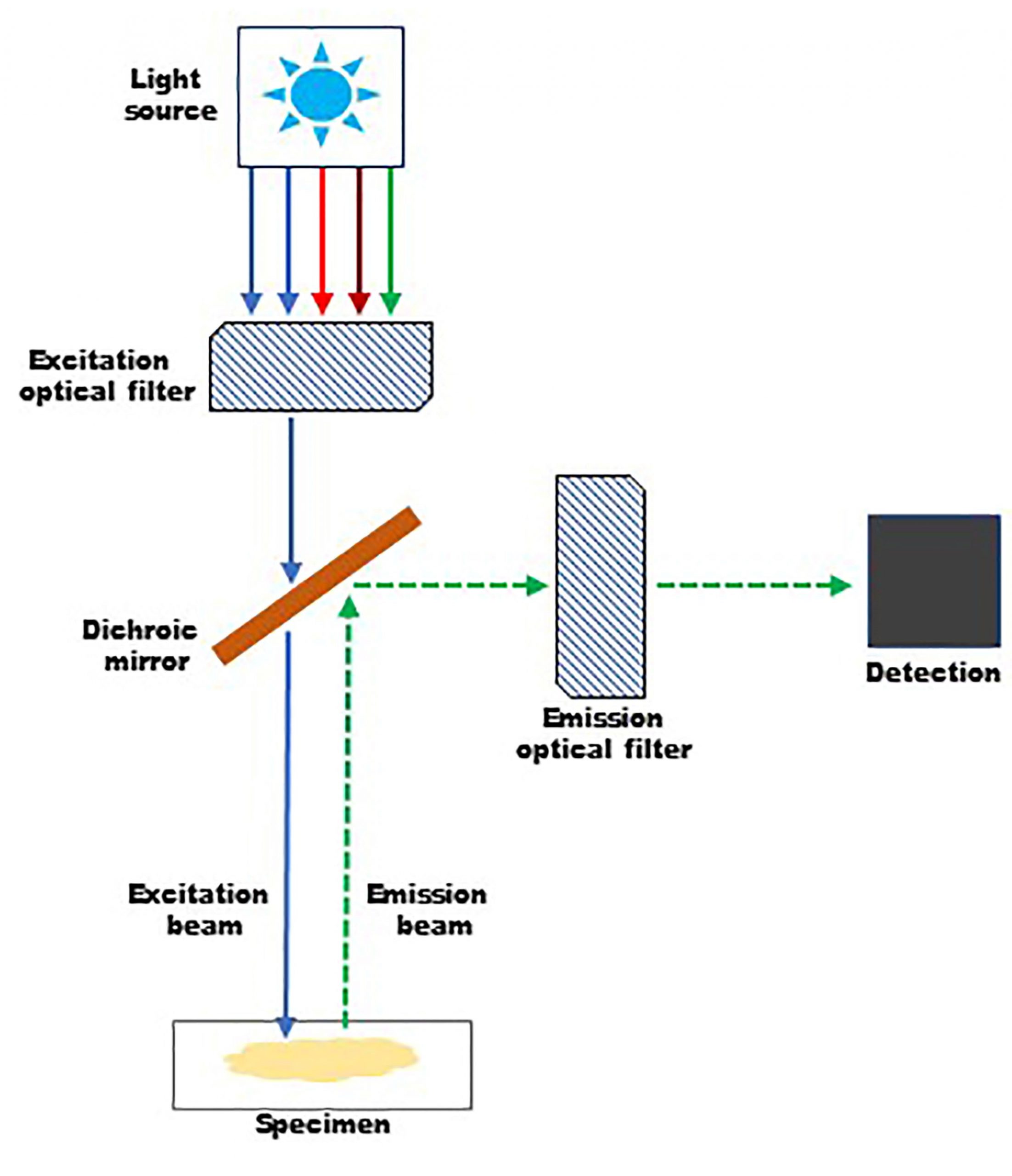

Figure 2. Basic design of a fluorescent microscope and epi-illumination.

Fluorescence Indicators (Fluorophores)

Dyes, stains, or fluorescent proteins that label components of a specimen are known as fluorescence indicators or fluorophores. These fluorophores are the molecules that absorb and emit light at specific wavelengths to produce a fluorescent image. When multiple probes are required, careful selection of fluorophores with non-overlapping Stokes shift wavelengths are desired to minimize ‘bleed-through’ between signals.9

Confocal Microscopy

The basic fluorescence microscope offers a wide-field view with respect to specimen imaging. This broad illumination field lead to noise from regions outside the plane of focus (bidirectionally as in horizontal and vertical planes), leading to lower resolution. A simple solution for this was placing a pinhole between the path of both the excitation and emission light beams, a technology now known as confocal microscopy. Apart from superior resolution, confocal technology also facilitated the scanning of a specimen to reconstruct complex high-resolution three-dimensional images.10

Two-photon microscopy

Photobleaching occurs when fluorophores are photochemically altered by the excitation source such that the molecule is unable to fluoresce. This is particularly pertinent to laser scanning confocal microscopes due to the high energy from excitation lasers. This also affects the level of tissue penetration for 3D imaging, before photobleaching occurs. Two-photon microscopy addressed this issue by “splitting” a single photon into two photons with half the energy. This allowed comparable excitation while achieving significant reduction in photobleaching as well as enhanced resolution. This hypothesis was formulated by Maria Gopport- Mayer and was put to practical use by Winfried Denk in the 1990s by construction of the first two-photon excitation (2PE) laser confocal microscope.11

Total Internal Reflection Fluorescence (TIRF) Microscopy

Though confocal and two-photon microscopy vastly improved the issues of resolution and photobleaching, they still proved inadequate for the purpose of single-molecule resolution and imaging. TIRF exploits the principle of reflection in such a way that the excitation beam is aimed at the critical angle that causes total internal reflection on the surface of the cover-glass. This assists in achieving enhanced resolution close to the surface of the cover-glass to a depth of 100 nm or less, thereby matching atomic scale resolution. The advantages of TIRF was successfully demonstrated with single ATP turn-over reaction in single myosin molecules in 1995.8

This post provides just a few glimpses into the vast repertoire of possibilities offered by fluorescence microscopy. To elaborate the variants of this rapidly growing field is beyond the scope of this article. But an important take-home point is the necessity of high-quality fluorophores suitable for both live and fixed specimen imaging. Biotium offers the widest range of reagents needed for all arenas of fluorescent imaging. Through cutting-edge research and development, Biotium is dedicated to developing high-performance tools for fluorescence-based biological research.

References

  1. Wollman, A. J., Nudd, R., Hedlund, E. G. & Leake, M. C. From Animaculum to single molecules: 300 years of the light microscope. Open Biol 5, 150019 (2015).
  2. Merk, A. et al. Breaking Cryo-EM Resolution Barriers to Facilitate Drug Discovery. Cell 165, 1698-1707 (2016).
  3. Shashkova, S. & Leake, M. C. Single-molecule fluorescence microscopy review: shedding new light on old problems. Biosci Rep 37, (2017).
  4. Renz, M. Fluorescence microscopy-a historical and technical perspective. Cytometry A 83, 767-779 (2013).
  5. Nelson, P. C. Time to Stop Telling Biophysics Students that Light Is Primarily a Wave. Biophys J 114, 761-765(2018).
  6. Sanderson, M. J., Smith, I., Parker, I. & Bootman, M. D. Fluorescence microscopy. Cold Spring Harb Protoc 2014, (2014).
  7. Huang, B., Bates, M. & Zhuang, X. Super-resolution fluorescence microscopy. Annu Rev Biochem 78, 993-1016 (2009).
  8. Kudalkar, E. M., Davis, T. N. & Asbury, C. L. Single-Molecule Total Internal Reflection Fluorescence Microscopy. Cold Spring Harb Protoc 2016, (2016)
  9. Francisco-Cruz, A., Parra, E. R., Tetzlaff, M. T. & Wistuba, II. Multiplex Immunofluorescence Assays. Methods Mol Biol 2055, 467-495 (2020).
  10. Stachs, O., Guthoff, R. F. & Aumann, S. in High Resolution Imaging in Microscopy and Ophthalmology: New Frontiers in Biomedical Optics (ed J. F. Bille)  263-284 (2019).
  11. Jung, S. R., Fujimoto, B. S. & Chiu, D. T. Quantitative microscopy based on single-molecule fluorescence. Curr Opin Chem Biol 39, 64-73 (2017).
