MiniMab™ Single-Domain Antibodies

Discover superior staining performance with MiniMab™ SdAbs paired with Biotium’s industry-leading CF® Dyes, outperforming conventional antibodies in immunofluorescence and beyond.

Superior to Conventional Abs

Faster staining, with greater solubility, stability, and deeper tissue penetration over traditional IgG antibodies

Ideal for Super-Resolution

Smaller size leads to smaller epitope-dye displacement, ideal for STORM and other super-resolution techniques

Bright & Photostable CF® Dyes

Available conjugated to industry-leading CF® Dyes, with unique near-IR options and best-in-class dyes for STORM

What are Single-Domain Antibodies?

Single-domain antibodies (SdAbs), or VHH domains, are small antigen-binding fragments from camelid heavy chain antibodies (HCAbs) found in alpacas, llamas, and camels. Unlike conventional IgGs, which use both heavy and light chains, HCAbs (IgG2 and IgG3) lack light chains and CH1 domains, relying on a single variable domain for antigen recognition. MiniMab™ SdAbs are recombinant versions of these VHH domains.



Unlock Deeper Insights with MiniMab™ SdAbs

MiniMab™ single-domain antibodies (SdAbs) from Biotium are a next-generation labeling tool that leverage the power of SdAbs for superior performance in immunofluorescence and other applications. Their smaller ~15 kDa size relative to conventional antibodies enables deeper tissue penetration, faster staining times, and improved access to tightly packed or masked epitopes—making them ideal for high-resolution and super-resolution imaging. MiniMabs™ also offer minimal epitope-dye displacement, preserving spatial accuracy for techniques like STORM and other super-resolution methods.

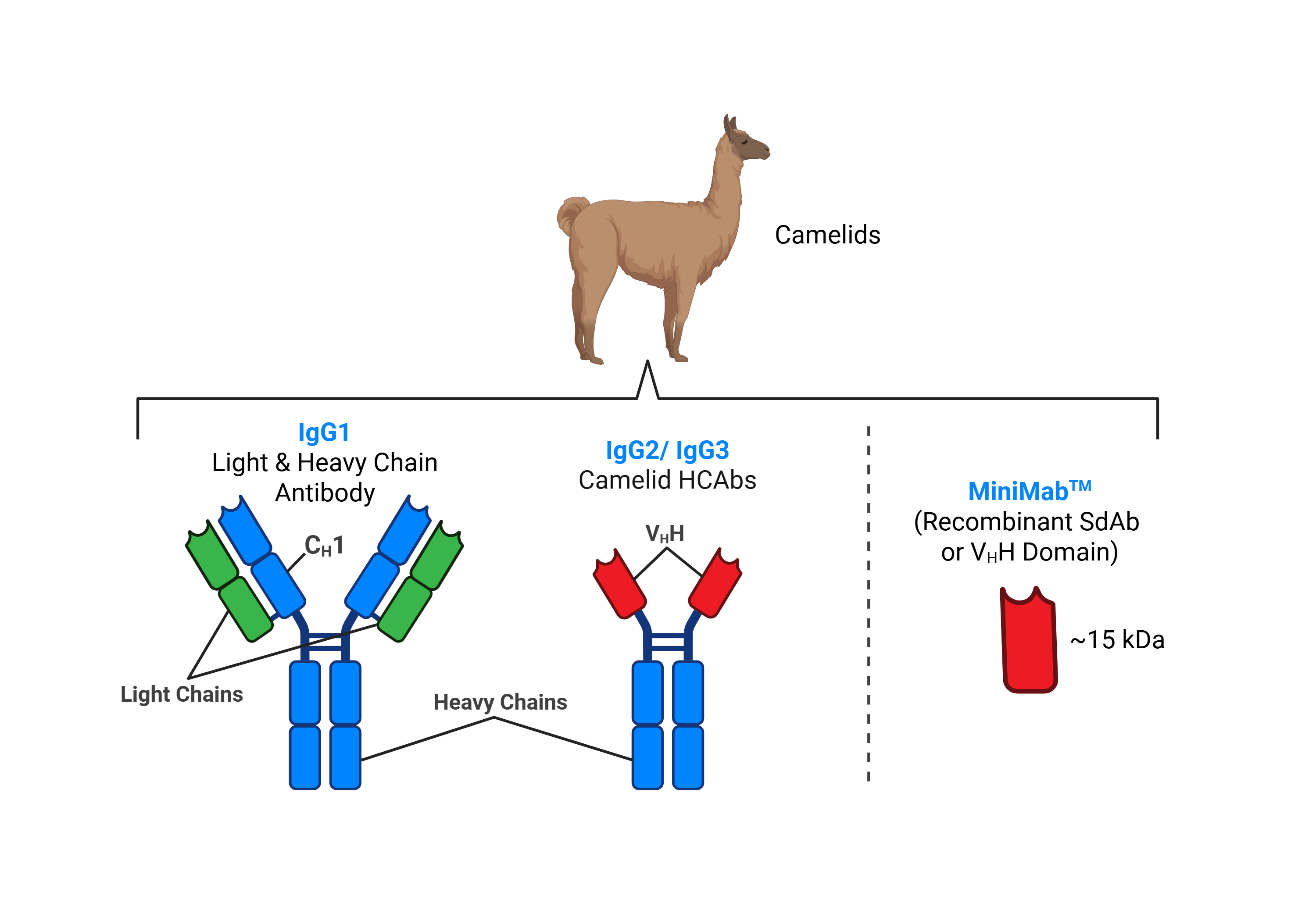

Alpacas produce three IgG subclasses. IgG1 has both heavy and light chains, while IgG2 and IgG3 are heavy chain only antibodies (HCAbs) lacking light chains and... See More

Top CF® Dyes for IF & Super-Resolution

MiniMab™ SdAbs are offered conjugated to Biotium’s industry-leading CF® Dyes, known for exceptional brightness, photostability, and broad spectral range, including NIR options like CF®740. These conjugates enable extended imaging with minimal signal loss and sharp, vivid results. With MiniMab™ CF® Dye conjugates, researchers gain a powerful toolset for both routine fluorescence microscopy and cutting-edge nanoscale visualization.

Features of MiniMab™  single-domain antibodies

  • Advantages over IgG antibodies: deeper tissue penetration, higher solubility and stability, and faster staining
  • Minimal epitope-dye displacement, perfect for super-resolution imaging
  • Developed and optimized for immunofluorescence
  • Labeled with bright, photostable CF® Dyes, including near-infrared CF®740
  • Available with best-in-class CF® Dyes for STORM
PFA-fixed rat brain cryosection stained with CF®568 GFAP rVHH (SdAb2409.GFAP) MiniMab™ (orange) and NucSpot® 680/700 (magenta). Scale bar: 20 um.
Rat eye cryosection stained with CF®568 VGLUT1 rVHH (SdAb2412.VGLUT1) MiniMab™ (orange). Nuclei are stained with NucSpot® 680/700. Scale bar: 50 um.
Rat retina cryosection stained with CF®488A SYT1 rVHH (SdAb2501.SYT1) MiniMab™ (green), anti-GFAP CF®740 (magenta), and NucSpot® 568/580 (red).
MCF7 cells stained with Nuclear Membrane Antibody (2406.NM) and CF®488A Alpaca Anti-Mouse IgG1 (Fc), rVHH (N2504.M1FC) MiniMab™.

FAQs

Biotium ships all antibodies (primary, secondary and conjugates) at room temperature. We guarantee their quality and performance under these conditions based upon our stability testing. Antibodies were subjected to accelerated stability testing by storing them at various temperatures (4°C, room temperature, or 37°C) for 1 week to mimic simulated shipping conditions and tested in immunostaining experiments. All antibodies showed the expected brightness and specificity, even after storage at sub-optimal temperatures for a week or longer. You can also download our Product Storage Statement here.

In line with our goal to be more environmentally friendly by reducing the use of excess packaging, and lowering shipping costs for our customers, products that have passed our stability testing are shipped at room temperature.

Once you have received the antibody vial, please follow the long-term storage instructions on the product information (PI) sheet.

Some of our products are packaged from a solution followed by solvent evaporation or lyophilization. If the chemical compound is very lightly colored or colorless and in small quantity, it may become thinly coated on the wall of the vial, making the vial appear empty. So, before you ask for a replacement, please inspect the vial carefully.

To dissolve lyophilized compounds, simply add the appropriate volume of the recommended solvent to the vial to make the desired concentration stock solution, and swirl or gently vortex to mix. Make sure the solvent comes in contact with the inside walls of the vial to fully recover the product.

Note that blue fluorescent dyes such as CFTM350, CFTM405M, and CFTM405S are colorless or very pale yellow, and may be difficult to see.

There are usually three aspects to dye stability: 1) chemical stability of the dye core structure; 2) stability of the reactive group; and 3) photostability of the dye.

Chemical stability of the dye core structure:

This refers to resistance of the dye core structure to decomposition caused by factors other than photo-bleaching. These factors may include temperature, pH and incompatibility with other chemicals in the medium. This type of stability information is most useful for estimating the shelf-life of the dye that is already covalently attached to another molecule (e.g., an antibody), or for assessing the chemical compatibility of the dye in certain applications. CF® Dyes bear the core structures of coumarin, pyrene, rhodamine or cyanine dyes, all of which are known to have excellent chemical stability. In general, CF® Dyes are far more stable than the antibodies they label. Thus, if a CF®-labeled antibody loses activity during storage, the problem is not likely to be caused by the dye. CF® Dyes are also stable enough for labeled nucleic acids to be used in PCR or nucleic acid hybridization, where high temperature is involved.

Stability of the reactive group:

Reactive CF® Dyes comprise a reactive group used in bioconjugation. Among the various reactive groups, only amine-reactive succinimidyl ester (SE) and thiol-reactive maleimide groups are unstable because the small amount of moisture trapped in or leaked into the packaging vials can cause hydrolysis of the reactive groups over time. The SE group, in particular, is susceptible to degradation. Thus, in order to slow degradation, CF® Dyes comprising these reactive groups must be stored at -20°C under anhydrous conditions. Furthermore, stock solutions of the dyes must be made using dry solvents, such as anhydrous DMSO. One advantage of CF® Dye SE products over other commercial dyes is their relatively high stability. Normally, an SE group can be derived from either an aliphatic or an aromatic carboxylic acid group, but an aliphatic carboxylic group tends to result in a more stable SE, offering higher resistance to hydrolysis and thus better labeling efficiency. All of the CF® SE Dyes have their SE groups derived from aliphatic carboxylic acid groups, unlike many commercially available SE dyes that are often prepared from aromatic carboxylic acid groups.

Photostability:

This refers to the dye’s ability to withstand photobleaching. For most dyes, photostability is not a major problem for routine handling under ambient light or for applications, such as flow cytometry and Western blotting, where the dyes are only briefly exposed to light. However, for microscopy, especially for confocal microscopy, where the dyes may be subject to intense illumination for an extended period of time, photobleaching can be a major concern. Similar to the photostability of other fluorescent dyes, both the dye core structure and the structure-modifying groups attached to it play a role in the photostability of CF® Dyes. CF® Dyes bear the core structure of rhodamine, cyanine, pyrene or coumarin dyes; among the four types of core structures, rhodamine core is the most photostable, followed by cyanine and then by pyrene and coumarin cores. The structure-modifying groups and the way they are attached to the dye cores are a key innovative aspect of CF® Dye technologies that contributes to the superior photostability of CF® Dyes over that of other commercial dyes. In general, rhodamine-based CF® Dyes, whose wavelengths range from visible to the near-IR region, offer the best photostability, making the dye ideal for microscopy applications.
