MEMBRANE POTENTIAL & NERVE TERMINAL DYES

Biotium offers a wide selection of fast- and slow-responding fluorescent membrane potential dyes, and synaptic vesicle dyes for monitoring nerve terminal activity. Jump to a section below, or see a list of products.

Fast-responding and slow-responding voltage-sensitive dyes
Dyes for monitoring synaptic vesicle trafficking
Fluorescent toxins, amyloid stains, antibodies, and more

Membrane Potential Dyes

Slow-Response Membrane Potential Dyes

Translational (or slow-response) voltage-sensing membrane potential dyes undergo a change in their membrane distribution as a result of changes in membrane potential.

The fluorescence of DiBAC4(3) is enhanced with membrane depolarization. The rate of fluorescence response of the dye is slower than styryl dyes like the ANEPPS dyes (see below), but the fluorescence change is significantly larger.

DiOC2(3) has been used for measuring membrane potential in bacteria. The green fluorescent dye forms red fluorescent aggregates with increasing membrane potential, allowing ratiometric potential measurements.

DiOC5(3) and DiOC6(3) are two of the most widely used carbocyanine dyes for membrane potential measurements.

Tetramethylrhodamine ethyl ester (TMRE) and Tetramethylrhodamine methyl ester (TMRM) can be used for quantitative measurements of membrane potential and mitochondrial membrane potential.

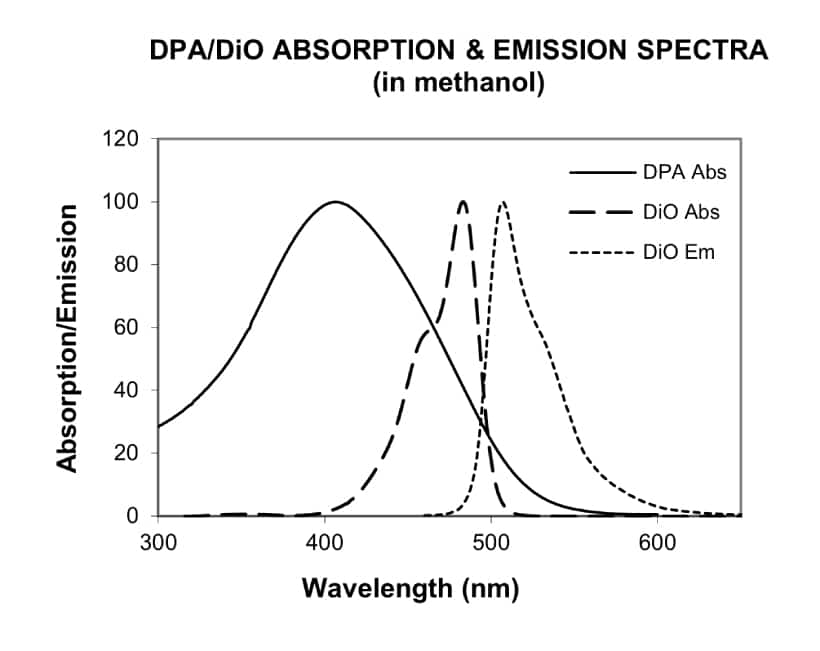

DiO/DPA Membrane Potential Kit

The membrane localization of the fluorescence quencher dipicrylamine (DPA) is a function of the polarity and magnitude of membrane potential. The DiO/DPA system detects cytoplasmic membrane potential changes using the principle of fluorescence resonance energy transfer (FRET). The green fluorescent membrane dye DiO is a “stationary” FRET donor while DPA acts as a mobile FRET acceptor, resulting in a membrane potential-dependent quenching of fluorescence by FRET. The DiO/DPA system has been reported to produce a fluorescence signal change of >56% in HEK-293 cells and >25% in neuronal cultures and brain slices per 100 mV membrane potential change.

Fast-Response Membrane Potential Dyes

Fast-response membrane voltage-sensitive dyes are styryl dyes that undergo changes in fluorescence intensity in response to changes in membrane potential, on the order of 2-10% change in fluorescence per 100 mV. The dyes also undergo spectral shift with changes in membrane potential, allowing ratiometric measurements. Fast response dyes have been used to measure electrical activity in neural and cardiac cells.

Di-4-ANNEPS has been used for studies of human stem cell-derived cardiomyocytes. Di-8-ANNEPPS is more hydrophobic and better retained in the outer leaflet of the plasma membrane than Di-4-ANNEPS, and therefore is more suitable for long-term membrane potential studies. It is also more photostable and less phototoxic than Di-4-ANNEPS.

Di-2-ANEPEQ (also known as JPW 1114) is a highly water soluble fast-responding dye that is usually introduced into cells by microinjection. Di-8-ANEPPQ and Di-12-ANEPPQ are successively more hydrophobic, and have been used for potential-sensitive retrograde labeling of neurons.

RH237, RH414, RH421, and RH795 are fast-responding potentiometric probes generally used for functional imaging of neurons. RH421 exhibits >20% fluorescence change per 100 mV on neuroblastoma cells. These dyes can differ in their physiological effects, for example RH414 causes arterial constriction during cortex staining, while the spectrally similar dye RH795 does not.

Slow-Responding Membrane Potential Dyes

Product Ex/Em Catalog number
DiBAC4(3) 493/516 nm 61011
DiOC2(3) 482/497 nm 70008
DiOC5(3) 482/497 nm 70007
DiOC6(3) 484/501 nm 70009
TMRE, 2 mM in DMSO 549/574 nm 70005
TMRE 549/574 nm 70016
TMRM 548/573 nm 70017

Fast-Responding Membrane Potential Dyes

Product Ex/Em Catalog number
Di-4-ANEPPS 496/705 nm1 61010
Di-8-ANEPPS 498/713 nm1 61012
Di-2-ANEPEQ (JPW 1114) See Note 2 61013
Di-8-ANEPPQ 61014
Di-12-ANEPPQ 61015
RH237 528/782 nm 61018
RH414 532/706 nm 61016
RH421 515/704 nm 61017
RH795 530/712 nm 61019
DiO/DPA Membrane Potential Kit 484/501 nm 30037
1Ex/Em is shown for dyes in methanol. In cell membranes, spectra of styryl dyes are typically blue-shifted by as much as 20 nm for absorption/excitation and 80 nm for emission.
2Spectrally similar to the ANEPPS dyes.

Back to top


Nerve Terminal Dyes


SynaptoRed™ & SynaptoGreen™

SynaptoGreen™ and SynaptoRed™ nerve terminal probes (originally called FM® dyes) are membrane dyes used to trace endocytic vesicles. They are a series of fluorescent cationic styryl dyes developed to follow synaptic activity at neuromuscular junctions or synapses. The dyes label synaptic vesicles in neuronal tissues and cultured neurons in an activity-depending fashion. They also can be used to label endocytic vesicles in other cell types.

Nerve terminal dyes have highly hydrophilic, cationically charged head group at one end with lipophilic tails at the other end. They are virtually non-fluorescent in aqueous solution, but become intensely fluorescent in membranes. Following nerve stimulation, the dye molecules are internalized in newly formed endocytic vesicles. During exocytosis, the dyes are released from the vesicles along with neurotransmitters, causing a decrease in fluorescence signal. As a result, the change in fluorescent intensity reflects the amount of endocytosis/exocytosis or synaptic activity. The rate of fluorescence increase during endocytosis (on-rate), and the rate of fluorescence decrease during exocytosis (off-rate) vary from dye to dye. AM dyes and HM dyes are fixable nerve terminal dyes. After staining with these dyes, cells can be fixed and permeabilized for subsequent immunostaining. See the table below for a list of nerve terminal dyes and their properties.

Figure 2. General structure of SynaptoGreen™ and SynaptoRed™ dyes.
Figure 3. General structure of AM fixable nerve terminal dyes.

Background Reducers & Nerve Terminal Staining Kits

A common problem encountered with nerve terminal dyes is background fluorescence due to residual membrane staining, even after extensive washing. To reduce this background fluorescence, we offer three quencher or dye-clearing agents. ADVASEP-7, a sulfonated β-cyclodextrin, forms a water soluble inclusion complex with SynaptoGreen™ C4 that can be removed more effectively by washing. Biotium’s unique quencher, SCAS, reduces background fluorescence as soon as it is added to the preparation without the need for washing. Sulforhodamine 101 quenches SynaptoGreen™ background staining via fluorescent resonance energy transfer (FRET). We offer these reagents as individual products and in kits with dyes and the quencher/dye-clearing agents.

Figure 4. Neurons in mouse dorsal root ganglia (DRG) labeled with AM1-43. Image courtesy of Dr. David Corey, Harvard Medical School. Also see Figure 6.

Properties of Nerve Terminal Dyes

Nerve Terminal Dye m* n* Fixable? Size Catalog number Features
SynaptGreen™ Dyes (Ex/Em ~480/660 nm in membranes)
SynaptoGreen™ C1 0 1 No 5 mg, 5 x 1 mg 70042, 70043 • Green nerve terminal probe
• Shortest tail for slowest on-rate & fastest off-rate
SynaptoGreen™ C2 (equivalent to FM®2-10) 1 1 No 70044, 70045 • Equivalent to FM®2-10
SynaptoGreen™ C3 2 1 No 70023, 70026 • Green nerve terminal probe
SynaptoGreen™ C4 (equivalent to FM®1-43) 3 1 No 70020, 70022 • Equivalent to FM®1-43
SynaptoGreen™ C5 (equivalent to FM®1-84) 4 1 No 70046, 70047 • Equivalent to FM®1-84
SynaptoGreen™ C18 (equivalent to FM®3-25) 17 1 No 70048, 70049 • Equivalent to FM®3-25
AM1-43 3 1 Yes 1 mg 70024 • Fixable version of SynaptoGreen C4
• Equivalent to FM®1-43FX
AM1-44 4 1 Yes 70038 • Improved fixability over AM1-43
AM2-10 1 1 Yes 70036 • Fixable analog of SynaptoGreen™ C2
AM3-25 17 1 Yes 70051 • Fixable far-red nerve terminal probe
HM1-43 3 1 Yes 70053 • Fixable red nerve terminal probe
SynaptoRed Dyes™ (Ex/Em ~510/750 nm in membranes)
SynaptoRed™ C1 0 3 No 5 mg, 5 x 1 mg 70040, 70041 • One carbon shorter than SynaptoRed™ C2
SynaptoRed™ C2 (equivalent to FM®4-64) 1 3 No 70021, 70027 • Equivalent to FM®4-64
SynaptoRed™ C2M** (equivalent to FM®5-95) 1 3 No 70019, 70028 • More water soluble than SynaptoRed™ C2
• Equivalent to FM®5-95
AM4-64 1 3 Yes 1 mg 70025 • Fixable version of SynaptoRed™ C2
AM4-65 3 3 Yes 70039 • Fixable version of SynaptoRed™ C2
AM4-66 4 3 Yes 70050 • Fixable and spectrally identical to SynaptoRed™ C2
*m is the number of carbons in the lipophilic tail and n is the number of double bonds linking the two aromatic rings in the dye.
**The positively-charged end of SynaptoRed C2M is a trimethylammonium group.
FM is a registered trademark of Thermo Fisher Scientific.

Nerve Terminal Staining Kits

Nerve Terminal Staining Kit Nerve Terminal Dye Background Reducer Catalog number
Nerve Terminal Staining Kit I SynaptoGreen™ C4 (5 x 1 mg ) ADVASEP-7 (250 mg) 70030
Nerve Terminal Staining Kit II (A) AM1-43 (1 mg) ADVASEP-7 (100 mg) 70031
Nerve Terminal Staining Kit II (B) AM1-43 (1 mg) SCAS (100 mg) 70031-1
Nerve Terminal Staining Kit III SynaptoGreen™ C4 (5 x 1 mg) Sulforhodamine 101 (100 mg) 70032
Nerve Terminal Staining Kit V SynaptoRed™ C2 (5 x 1 mg) ADVASEP-7 (250 mg) 70034

Neuronal Probes & Reagents

Visit our Neuronal Probes & Tools Page, to learn about our selection of toxins, fluorescent receptor probes, primary antibodies, and more.
