CF®640R Dye

Highly photostable far-red dye

Best photostability among Cy®5-like dyes
Yields conjugates with excellent brightness
Comparible with TIRF and other super-resolution techniques
CF® Dye Spectrum:
CF®350 Dye

CF®350 is a blue fluorescent dye

300400500600700800900Wavelength (nm)CF350
Technical Summary

Abs/Em Maxima: 347/448 nm
Extinction coefficient: 18,000
Molecular weight: ~ 496
Excitation source: UV
Replaces: Alexa Fluor® 350, AMCA,
DyLight® 350

Features

Brighter and more photostable than AMCA
Direct replacement for Alexa Fluor® 350
Highly water soluble and pH-insensitive

View Technology
CF®405S Dye

Improved brightness & photostability for the 405 nm laser line

300400500600700800900Wavelength (nm)CF405S
Technical Summary

Abs/Em Maxima: 404/431 nm
Extinction coefficient: 33,000
Molecular weight: ~ 1,169
Excitation laser line: 405 nm
Replaces: Alexa Fluor® 405, Cascade Blue®,
DyLight® 405

Features

Brighter than Alexa Flour®  408

View Technology
CF®405M Dye

Improved brightness & photostability for the 405 nm laser line

300400500600700800900Wavelength (nm)CF405M
Technical Summary

Abs/Em Maxima: 408/452 nm
Extinction coefficient: 41,000
Molecular weight: ~ 503
Excitation laser line: 405 nm
Replaces: Pacific Blue®, BD Horizon™ V450

Features

More photostable than Pacific Blue®, with less spill-over in the green channel
An excellent choice for super-resolution imaging by SIM

View Technology
CF®405L Dye

A 405 nm-excitable dye with orange fluorescence emission

300400500600700800900Wavelength (nm)CF405L
Technical Summary

Abs/Em Maxima: 395/545 nm
Extinction coefficient: 24,000
Molecular weight: ~1573
Excitation laser line: 405 nm
Replaces: Pacific Orange®

Features
View Technology
CF®430 & CF®440 Dyes

Photostable 405 nm-excitable dyes with green fluorescence

300400500600700800900Wavelength (nm)CF430CF440
Technical Summary

CF®430
Abs/Em Maxima: 426/498 nm
Extinction coefficient: 40,000
Molecular weight: ~429
Excitation laser line: 405 nm
Replaces: Pacific Green®, BD Horizon™ V500,
Krome Orange™
CF®440
Abs/Em Maxima: 440/515 nm
Extinction coefficient: 40,000
Molecular weight: ~716
Excitation laser line: 405 nm
Replaces: Alexa Fluor® 430

Features

Photostable dyes suitable for microscopy
Perfect match for the CFP filter set
Suitable for flow cytometry in the AmCyan channel
Highly water soluble and pH-insensitive

View Technology
CF®450 Dye

A green fluorescent dye with unique spectral properties

300400500600700800900Wavelength (nm)CF450
Technical Summary

Abs/Em Maxima: 450/538 nm
Extinction coefficient: 40,000
Molecular weight: ~689
Excitation laser line: 405 nm

Features
View Technology
CF®488A Dye

A superior green fluorescent dye

300400500600700800900Wavelength (nm)CF488A
Technical Summary

Abs/Em Maxima: 490/515 nm
Extinction coefficient: 70,000
Molecular weight: ~914
Excitation laser line: 488 nm
Replaces: Alexa Fluor® 488, DyLight® 488,
fluorescein (aka FITC, FAM), Cy®2

Features

Minimally charged, for less non-specific binding than Alexa Fluor® 488
Narrower emission spectrum for less bleed to red
Very photostable
Compatible with super-resolution imaging by TIRF
Highly water soluble and pH-insensitive

View Technology
CF®514 Dye

Alternative green fluorescent dye

300400500600700800900Wavelength (nm)CF514
Technical Summary

Abs/Em Maxima: 516/548 nm
Extinction coefficient: 105,000
Molecular weight: ~1216
Excitation laser line: 488 nm
Replaces: Alexa Fluor® 514

Features

Image using the same settings as FITC or CF®488A
Can be distinguished from CF®488A in the same specimen by spectral imaging and linear unmixing

View Technology
CF®532 Dye

A bright orange fluorescent dye for the 532 nm laser

300400500600700800900Wavelength (nm)CF532
Technical Summary

Abs/Em Maxima: 527/558 nm
Extinction coefficient: 96,000
Molecular weight: ~ 685
Excitation laser line: 532 nm
Direct replacement for: Alexa Fluor® 532, Atto 532

Features

Designed for the 532 nm laser
Brighter than Alexa Fluor® 532
Highly water-soluble and pH-insensitive

View Technology
CF®535ST Dye

An orange fluorescent dye designed for STORM super-resolution imaging

300400500600700800900Wavelength (nm)CF535ST
Technical Summary

Abs/Em Maxima: 535/568 nm
Extinction coefficient: 95,000
Molecular weight: ~728
Excitation laser line: 532 nm

Features
View Technology
CF®543 Dye

An orange fluorescent dye ideal for the 543 nm laser

300400500600700800900Wavelength (nm)CF543
Technical Summary

Abs/Em Maxima: 541/560 nm
Extinction coefficient: 100,000
Molecular weight: ~ 870
Excitation laser line: 532 nm, 543 nm, or
546 nm
Direct replacement for: Alexa Fluor® 546,
TAMRA

Features

Optimized for the 543 nm laser
Yields the brightest conjugates among spectrally similar dyes
Highly water-soluble and pH-insensitive

View Technology
CF®555 Dye

A bright and photostable orange-red dye

300400500600700800900Wavelength (nm)CF555
Technical Summary

Abs/Em Maxima: 555/565 nm
Extinction coefficient: 150,000
Molecular weight: ~ 901
Excitation laser line: 532 nm or 568 nm
Direct replacement for: Alexa Fluor®
555, ATTO 550, Cy®3, DyLight® 549,
Rhodamine

Features

Brighter than Cy®3
Highly water-soluble
Validated in multicolor STORM super-resolution imaging

View Technology
CF®568 Dye

Outshines Alexa Fluor®568

300400500600700800900Wavelength (nm)CF568
Technical Summary

Abs/Em Maxima: 562/583 nm
Extinction coefficient: 100,000
Molecular weight: ~ 714
Excitation laser line: 532 nm or 568 nm
Direct replacement for: Alexa Fluor® 568,
ATTO 565, Rhodamine Red

Features

Yields much brighter antibody conjugates than Alexa
Fluor® 568
Extremely photostable
Excellent choice for multi-color imaging with CF®488A and CF®640R
Compatible with TIRF and multicolor STORM super resolution imaging

View Technology
CF®570 & CF®583 Dyes

Bright red fluorescent dyes

300400500600700800900Wavelength (nm)CF570CF583
Technical Summary

CF®570 Technical Summary

Abs/Em maxima: 568/591 nm
Extinction coefficient: 150,000
Molecular weight: ~2998
Excitation laser line: 561 to 568 nm
Replaces: Alexa Fluor® 568, ATTO 565, DY-560, Rhodamine Red

CF®583 Technical Summary

Abs/Em maxima: 583/606 nm
Extinction coefficient: 150,000
Molecular weight: ~3127
Excitation laser line: 561 to 568 nm
Replaces: Cy®3.5

Features
View Technology
CF®594 Dye

Truly the brightest deep red dye

300400500600700800900Wavelength (nm)CF594
Technical Summary

Abs/Em Maxima: 593/614 nm
Extinction coefficient: 115,000
Molecular weight: ~730
Excitation laser line: 532 nm, 568 nm or
594 nm
Replaces: Alexa Fluor® 594, DyLight® 594,
Texas Red®

Features

Yields the brightest antibody conjugates among spectrally
similar dyes.
Excellent choice for multicolor imaging with green dyes like CF®488A
Extremely photostable
Also see CF®594ST, a version of CF®594 engineered specifically for STORM microcopy

View Technology
CF®594ST Dye

Deep red dye for STORM

300400500600700800900Wavelength (nm)CF594ST
Technical Summary

Abs/Em maxima: 593/614 nm
Extinction coefficient: 115,000
Molecular weight: ~868
Excitation laser line: 532 to 568 nm

Features
View Technology
CF®620R Dye

A bright and photostable far-red dye

300400500600700800900Wavelength (nm)CF620R
Technical Summary

Abs/Em Maxima: 617/639 nm
Extinction coefficient: 115,000
Molecular weight: ~ 738
Excitation laser line: 633 nm or 635 nm
Replaces: LightCycler® Red 640

Features

Highly water-soluble
Highly fluorescent and extremely photostable
Absorption/emission at 617/639 nm for use in FRET or multi-color detection

View Technology
CF®633 Dye

The best dye for 633/635 laser lines

300400500600700800900Wavelength (nm)CF633
Technical Summary

Abs/Em Maxima: 630/650 nm
Extinction coefficient: 100,000
Molecular weight: ~820
Excitation laser line: 633 nm or 635 nm
Replaces: Alexa Fluor® 633, Alexa Fluor®
647, Cy®5, DyLight® 633, DyLight® 649

Features

Yields the brightest antibody conjugates among spectrally similar dyes

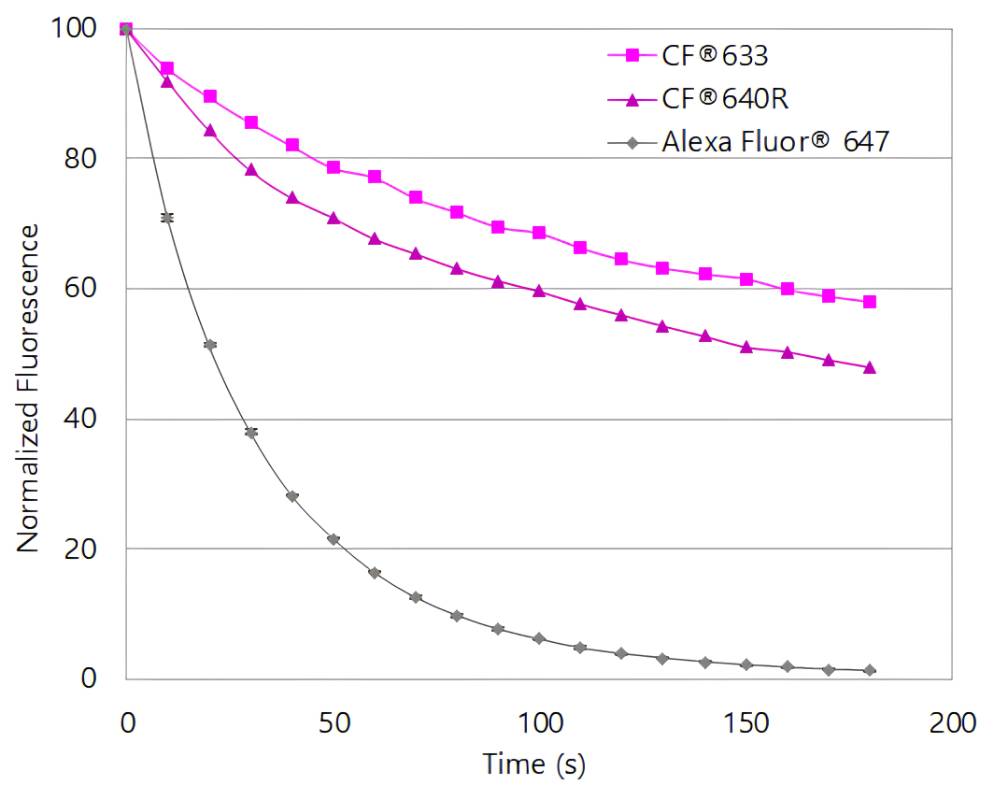

Far more photostable than Alexa Fluor® 647
Compatible with TIRF, FIONA, and gSHRImP super-resolution imaging methods

View Technology

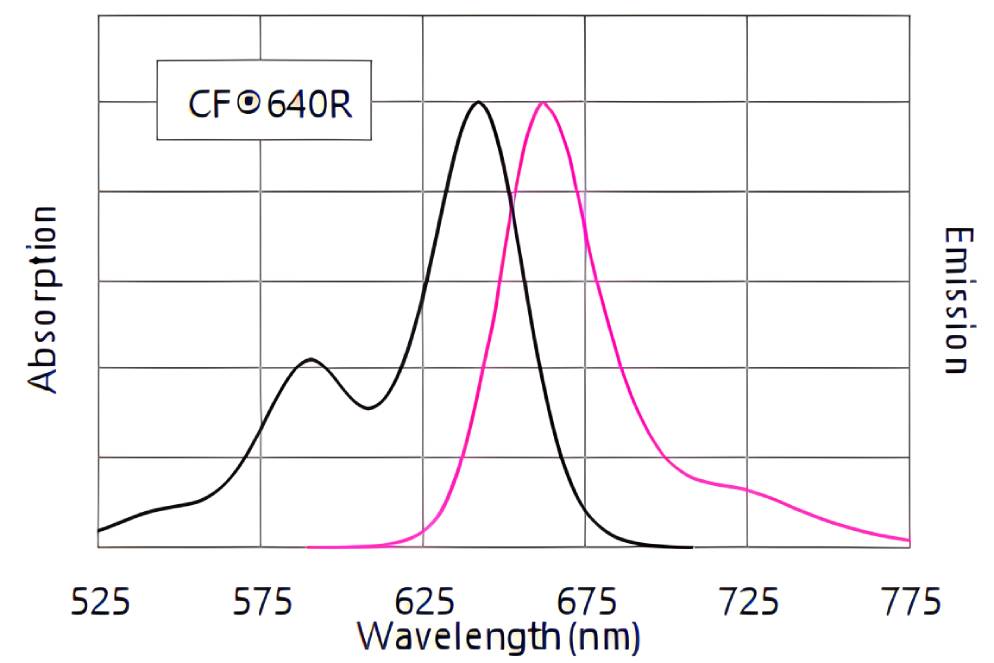

CF®640R Dye

A highly photostable far-red dye

300400500600700800900Wavelength (nm)CF640R
Technical Summary

Abs/Em Maxima: 642/662 nm
Extinction coefficient: 105,000
Molecular weight: ~ 832
Excitation laser line: 633 nm, 635 nm or
640 nm
Replaces Alexa Fluor® 647, ATTO 647N,
Cy®5, DyLight® 649

Features

Best photostability among Cy®5-like dyes
Yields highly fluorescent protein conjugates
Compatible with TIRF and FLIMP super-resolution microscopy

View Technology
CF®647 Dye

A highly fluorescent far-red dye

300400500600700800900Wavelength (nm)CF647
Technical Summary

Abs/Em Maxima: 650/665 nm
Extinction coefficient: 240,000
Molecular weight: ~ 1058
Excitation laser line: 633 nm, 635 nm or
640 nm
Replaces: Cy®5, Alexa Fluor® 647,
DyLight® 649

Features

Brighter than Cy®5
Highly water soluble and pH insensitive
Validated in multi-color super-resolution imaging by STORM

View Technology
CF®660C and CF®660R Dyes

Superior alternatives to Alexa Fluor® 660

300400500600700800900Wavelength (nm)CF660CCF660R
Technical Summary

CF®660C
Abs/Em Maxima: 667/685 nm
Extinction coefficient: 200,000
Molecular weight: ~ 3112
Excitation laser line: 633 nm, 635 nm or 640 nm
Replaces: Alexa Fluor® 660, APC

CF®660R
Abs/Em Maxima: 663/682 nm
Extinction coefficient: 100,000
Molecular weight: ~ 888
Excitation laser line: 633 nm, 635 nm or 640 nm
Replaces: Alexa Fluor® 660, APC

Features

CF®660C Features
Much brighter and more photostable than Alexa Fluor® 660
Compatible with multicolor super-resolution imaging by STORM

CF®660R Features
Brighter than Alexa Fluor® 660
Unrivaled photostability among spectrally similar dyes

View Technology
CF®680 and CF®680R Dyes

Two outstanding 680 nm-excitable dyes

300400500600700800900Wavelength (nm)CF680CF680R
Technical Summary

CF®680
Abs/Em Maxima: 681/698 nm
Extinction coefficient: 210,000
Molecular weight: ~ 3241
Excitation laser line: 680 nm or 685 nm
Replaces: Alexa Fluor® 680, Cy®5.5, IR®Dye 680

CF®680R
Abs/Em Maxima: 680/701 nm
Extinction coefficient: 140,000
Molecular weight: ~ 912
Excitation laser line: 680 nm or 685 nm
Replaces: Alexa Fluor® 680, Cy®5.5, IR®Dye 680

Features

CF®680 Features
The brightest among spectrally similar dyes
Validated in multicolor STORM and 3D super-resolution
microscopy
Compatible with LI-COR® Odyssey®

CF®680R Features
Unrivaled photostability among spectrally similar dyes
Compatible with STED and single molecule spectroscopy super-resolution imaging (see pp. 20-21)
Molecular weight compatible with nucleic acid labeling
Compatible with LI-COR® Odyssey®

View Technology
